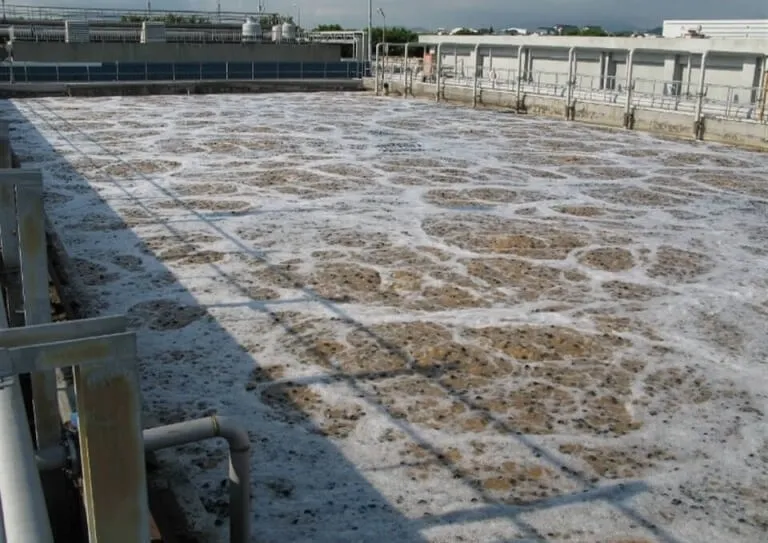

In MBBR (Moving Bed Biofilm Reactor) systems, one design parameter quietly determines a large part of the process behavior:

The media filling ratio.

It is often treated as a simple percentage during design, but in reality, it directly influences:

  • Treatment capacity
  • Oxygen demand
  • Biofilm thickness
  • Mixing behavior
  • Energy consumption
  • Operational stability

Choosing the wrong filling ratio does not just reduce efficiency — it can fundamentally change how the system behaves.

1. What Is Media Filling Ratio in MBBR Systems?

The filling ratio refers to the percentage of reactor volume occupied by carrier media.

Typical ranges:

  • 20%–30% → low-load systems
  • 30%–50% → standard municipal/industrial design
  • 50%+ → high-load or compact systems

While this seems like a simple design choice, it actually defines the biological intensity of the reactor.

2. Higher Filling Ratio = More Biomass, But Not Always Better

Increasing media volume means:

  • More surface area for biofilm growth
  • Higher biomass concentration
  • Greater treatment capacity potential

However, beyond an optimal point:

  • Media collisions increase
  • Shear stress becomes excessive
  • Biofilm becomes unstable
  • Oxygen transfer efficiency decreases

So more media does not automatically mean better performance.

3. Lower Filling Ratio Improves Stability but Reduces Capacity

A lower filling ratio provides:

  • Better hydraulic mixing
  • Lower energy demand
  • More stable biofilm growth
  • Reduced clogging risk

But it also results in:

  • Lower total biomass
  • Reduced peak load capacity
  • Larger reactor volume requirement

This is why low filling ratios are typically used in low-strength wastewater applications.

4. Filling Ratio Directly Affects Oxygen Demand

More media means more biological surface area.

More surface area means:

  • Higher oxygen consumption
  • Higher aeration requirement
  • Increased blower energy demand

If aeration is not adjusted accordingly:

  • DO drops
  • Nitrification becomes unstable
  • Performance fluctuates

Filling ratio and aeration design must always be balanced together.

5. Hydraulic Mixing Becomes More Difficult at High Ratios

As media concentration increases:

  • Flow resistance increases
  • Mixing becomes more turbulent
  • Dead zones may appear
  • Carrier movement can become uneven

If mixing is not properly designed:

  • Some media becomes inactive
  • Biofilm growth becomes uneven
  • Treatment efficiency drops

Hydraulic design is just as important as biological design.

6. Biofilm Thickness Is Influenced by Filling Ratio

Filling ratio indirectly controls biofilm behavior:

  • Low ratio → thinner, more stable biofilm
  • High ratio → thicker, more competitive biofilm

Thicker biofilm can:

  • Limit oxygen penetration
  • Create anaerobic inner zones
  • Increase sloughing events

Stable treatment often depends on controlled biofilm thickness, not maximum biomass.

7. Optimal Filling Ratio Depends on Application

There is no universal “best” value.

Typical guidelines:

  • Municipal wastewater → 30–40%
  • Industrial medium load → 40–50%
  • High-strength industrial wastewater → 50%+ (carefully designed)

Final selection depends on:

  • Influent characteristics
  • Required effluent quality
  • Tank geometry
  • Aeration capacity
  • Energy constraints

Conclusion

The MBBR filling ratio is not just a design percentage — it is a system behavior driver.

It affects:

  • Biological capacity
  • Energy consumption
  • Process stability
  • Operational flexibility

Successful MBBR design is not about maximizing media volume.

It is about balancing biology, hydraulics, and energy in the same system.

When correctly optimized, the filling ratio becomes one of the most powerful tools for achieving efficient and stable wastewater treatment.
